Red Label Combi 80/100 XXL with Media

Description

Red Label Combi 80/100XXL with Media

The Red Label Combi 80/100XXL filters are impressively large combi filters, renowned for their advanced design and superior functionality. These filters boast Red Label’s patented drum filter sealing system, ensuring optimal performance and reliability.

One of the standout features of the Red Label Combi 80/100XXL is its standard 40 Watt INOX UVC built-in unit. However, users have the flexibility to upgrade this to an 80 Watt INOX built-in unit if desired. This adaptability allows for enhanced filtration efficiency and caters to varying needs.

The filter system is designed with durability in mind. A protective cover is integrated to shield the UV light from directly affecting the drum seal. This thoughtful addition significantly extends the lifespan of the seal, ensuring long-term functionality.

Maintenance has never been easier with the unique double brush system embedded in the drum filter. This system effectively keeps the dirt discharge channel clear, minimizing the need for frequent maintenance and ensuring that the filter operates smoothly over extended periods.

Moreover, the Red Label Combi 80/100XXL filter features an expanded space dedicated to the biological filter. This larger area facilitates better biological filtration processes. The filter also includes a moving bed filter and a spacious matting room, further enhancing its capability to maintain clean and healthy water.

In summary, the Red Label Combi 80/100XXL filter system, with its innovative design, flexible UV unit options, and maintenance-friendly features, stands out as a top-tier choice for those seeking efficient and reliable water filtration solutions.

• Article code
  F2010008
• Type
  BASIC Combi 80/100 XXL
• Gravity or pump-fed versions

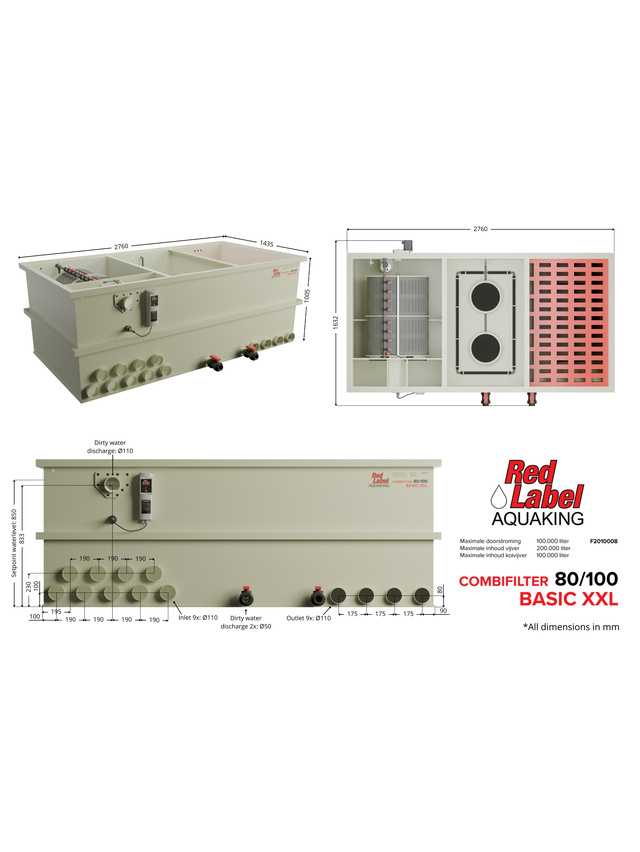

• Size (LxWxH)
  2760 x 1589 x 1015 mm
• Max. flow
  100 m3/h
• Filter panels stainless
  steel 120 micron
• Panel size
  800 x 650 mm
• Inlet
  9x 110 mm
• Output
  4x 110 mm
• Dirt removal
  2x 110 mm
• Flush pump
  Built-in PRO Flush pump 5bar
• Drive motor
  27 Nm
• Control cabinet
  Control cabinet LUXE | Ip 65
• Material
  PP
• UVC
  Built-in 40 Watt STAINLESS STEEL
